Zaha Hadid em Roma: MAXXI_National Museum of the XXI Century Arts

[JPBrazil]

Photographer Luke Hayes has sent us a selection of photos of the MAXXI_National Museum of the XXI Century Arts in Rome by architect Zaha Hadid.



The 27,000 square metre centre is Italy’s first national public museum of comtemporary arts and features two museums – MAXXI Art and MAXXI Architecture.









In the words of Zaha Hadid

‘An interesting thing about the museum in Rome is that it is no longer an object, but rather a field, which implies that many programs could be attached to the museum. It’s no longer a museum, but a centre.



Here we are weaving a dense texture of interior and exterior spaces. It’s an intriguing mixture of permanent, temporary and commercial galleries, irrigating a large urban field with linear display surfaces. It could be a library; there are so many buildings that are not standing next to, but are intertwined and superimposed over one another.



This means that, through the organizational diagram, you could weave other programs into the whole idea of gallery spaces. You can make connections between architecture and art – the bridges can connect them and make them into one exhibition.



That gives you the interesting possibility of having an exhibition across the field. You can walk through a whole segment of a city to view spaces. In Rome, the organization will allow you to have exhibitions across the field, but they can also be very compressed, so you have a great variety.’

- Zaha Hadid



The MAXXI relates to the urban context in which it is inserted by re-proposing the horizontal development of the former military barracks, in opposition to the taller residential buildings that surround the site. The geometric structure of the project is aligned along the two grids that regulate the urban structure of this part of the city.



The reinterpretation of these two geometric structures within the proposal generates the surprising geometric complexity of the campus. Sinuous lines harmonise the overall scheme and facilitate flows across the site, mediating between the two urban axes.

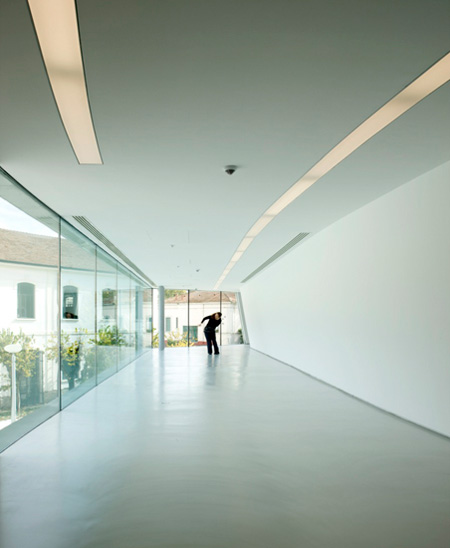

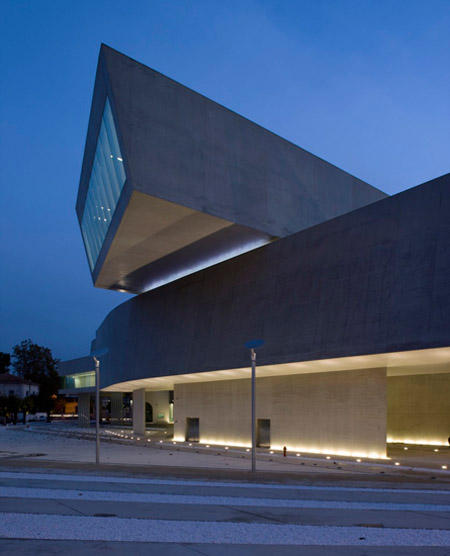

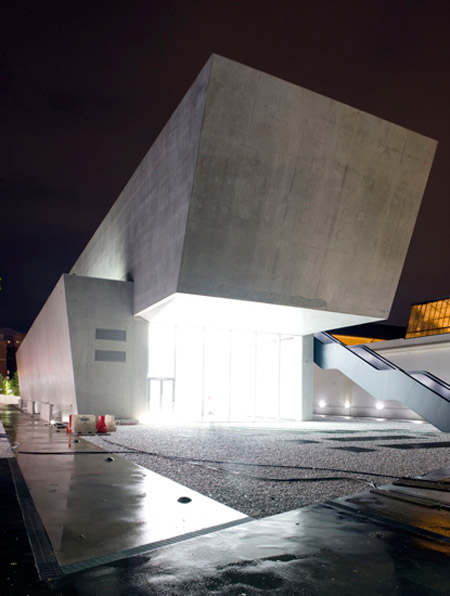

The pedestrian path that crosses the campus follows the soft lines of the museum, slipping under its cantilevered volumes. The interior of the building presents visitors with a glimpse of numerous views and openings that cross the structure: on the one hand protecting its contents between its solid walls, on the other inviting visitors to enter through its large glazed surfaces on the ground floor.

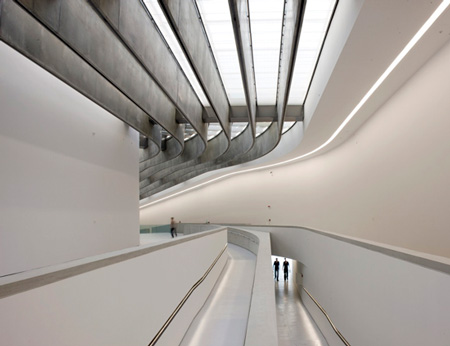

The main idea behind the project is directly related to the objective of creating a building for the presentation of the visual arts. The site is “furrowed” by exhibition spaces, the walls that cross its spaces, their intersections defining interior and exterior space. This system works on three levels, the second of which is the most complex and richest, with it various bridges that connect the building and the galleries. Visitors are invited to dive into a dense, continuous space instead of confronting the compact volume of an isolated building.

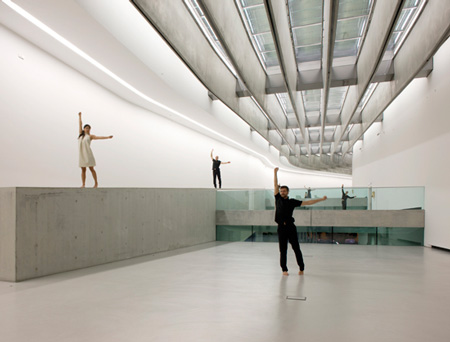

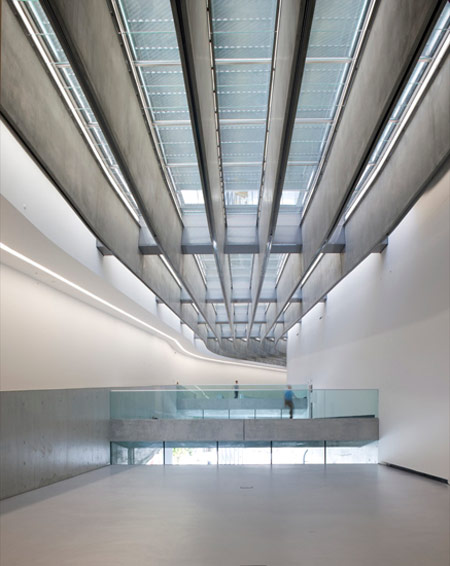

The interior space, defined by the walls of the display galleries, are covered by a glass roof that floods the spaces with natural light, filtered between the roof trusses. These latter reinforce the linearity of the spatial system and assist the articulation of the various directions, overlappings and bifurcations of the system of gallery spaces. The honed linearity of the walls facilitates circulation through the campus, inside the galleries and between the objects on display.



MAXXI: A Campus for Culture

The MAXXI National Museum of 21st Century Arts, instituted by the Italian Ministry for Cultural Heritage and Activities, is Italy’s first national public museum dedicated to contemporary creativity. The definitive home of the museum, designed by Zaha Hadid (winner of the 1999 international design competition) is currently nearing completion in Rome’s Flaminio neighbourhood, on the site of the former Montello Barracks. Since 2003 an experimental and innovative construction site has been working to complete this new, ultramodern museum.



The complex is home to two distinct institutions: MAXXI Art (directed by Anna Mattirolo) and MAXXI Architecture (directed by Margherita Guccione), focused on promoting the arts and architecture through the collection, conservation, study and dissemination of the most current movements. To date, the MAXXI Art collection contains over 300 works by such artists as Boetti, Clemente, Kapoor, Kentridge, Merz, Penone, Pintaldi, Richter, Warhol and others of equal fame.



The MAXXI Architecture collection features the personal archives of Carlo Scarpa, Aldo Rossi, Pierluigi Nervi and others, as well as projects by contemporary architects such as Toyo Ito, Italo Rota and Giancarlo De Carlo, together with the photographic collections of the Atlante italiano and Cantiere d’autore projects.



Designed as a campus of arts and culture, the multi-disciplinary and multi-functional MAXXI is also a new urban space open to the entire city. The MAXXI’s 27,000 m2 contain – in addition to the two museums – an auditorium, a library and media library, a bookshop, a cafeteria, temporary exhibition spaces, various open spaces for live events, commercial activities, workshops and spaces of study and recreation.



Open to the city and the world, the MAXXI aims to become a point of reference for public and private institutions in Italy and abroad, for artists, architects and the general public. The integration of Zaha Hadid’s project within the fabric of the city is made possible by an architectural solution that develops the idea of an urban campus. In fact, the MAXXI casts aside the idea of the “closed” building in favour of a broader dimension that extends the interior spaces into the exterior spaces around the building, open to the entire neighbourhood.

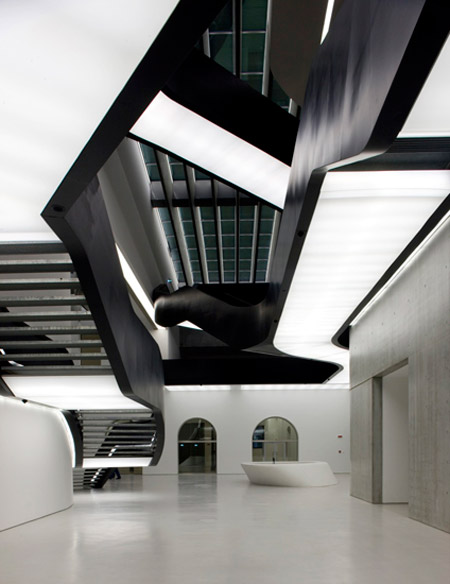

The two museums – MAXXI Art and MAXXI Architecture – rotate around a large, double storey atrium, the point of connection with the permanent collection galleries and temporary exhibition spaces, the auditorium, reception area, cafeteria and bookshop. Outside, a pedestrian path follows the shape of the building, slipping under its cantilevered volumes and restoring an urban connection interrupted for almost a century by the former military structure.

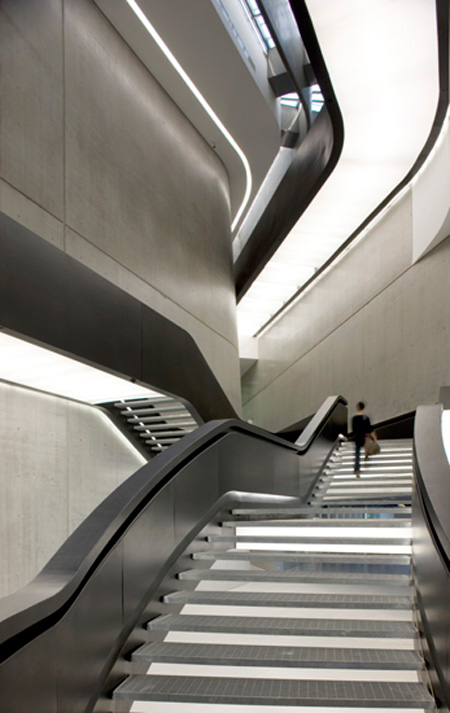

In opposition to the decisive architectural sign that dominates the exterior spaces and the atrium, a more sober spatial quality characterises the exhibition halls that host the collections of the two museums. A combination of glass (roof), steel (stairs and columns) and concrete (walls) defines the neutral appearance of the display spaces, while moveable panels ensure the flexibility of their use.

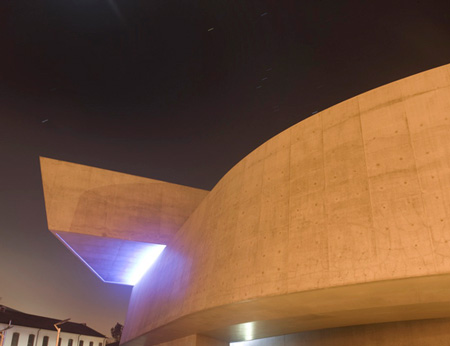

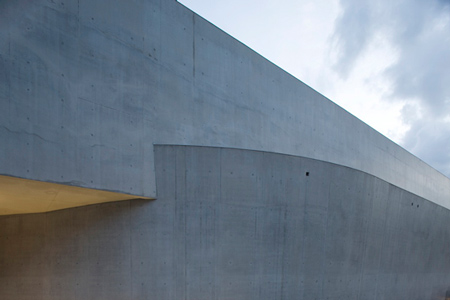

The fluid and sinuous forms and the variation and interweaving of different levels– assisted by the modulated use of natural light – combine to create a highly complex spatial and functional experience that offers continuously different and unexpected views, from the interior towards the open spaces. The project is characterised by two primary architectural elements: the exposed concrete walls that delimit the exhibition halls and determine the intertwining of volumes, and the transparent roof that modulates and filters natural light. Finally, the roofing system contains all of the various equipment required by the museum’s functions: it integrates operable glazing, natural light filtering devices, artificial illumination and environmental control systems.

MAXXI Museo nazionale delle arti del XXI secolo – via Guido Reni, 2f 00196 Roma

–

Posted by Marcus Fairs

Fonte: Dezeen
Link: http://www.dezeen.com/2009/11/12/max...by-zaha-hadid/

[KASchramm]

Show!

[Tquintan]

Muito bom esse museu, excelente projeto

[joker-rs]

Gostei!

[pedrop.rio]

Se fosse no Brasil, já iriam reclamar do concretão aparente manchado.

[danieldantas]

parece que alguém se inspirou no veio niemeyer...

[Vittariano]

A melhor arquiteta do mundo na atualidade...show de bola! Queria ver obras suas em POA!!!!

[RPFigueiredo]

Quem tem Pritzker é foooda!

[Leonardo López]

ficou bacana

[JPBrazil]

Mais algumas imagens:













fonte: http://www.arplus.com/9600/maxxi-mus...by-zaha-hadid/

PS: Eu li que esse projeto foi feito pela Zaha quando ela ainda não era uma 'starchitect'. Para mim isso explica muita coisa, eu acho esse projeto melhor que outros recentes delas... sei lá é mais sutil, orgânico.

[lusorod]

pois é a arquitetura deveria ter pelo menos evoluido do que o Niemeyer fez pra isso aí, mas nem mesmo isso aconteceu no Brasil. Uma pena pq eu não curto ON, mas esse projeto aí eu já curto. Isso é pq além de ser esteticamente mais interessante e de bom gosto tem um acabamento que pelo menos na foto parece ser melhor.
