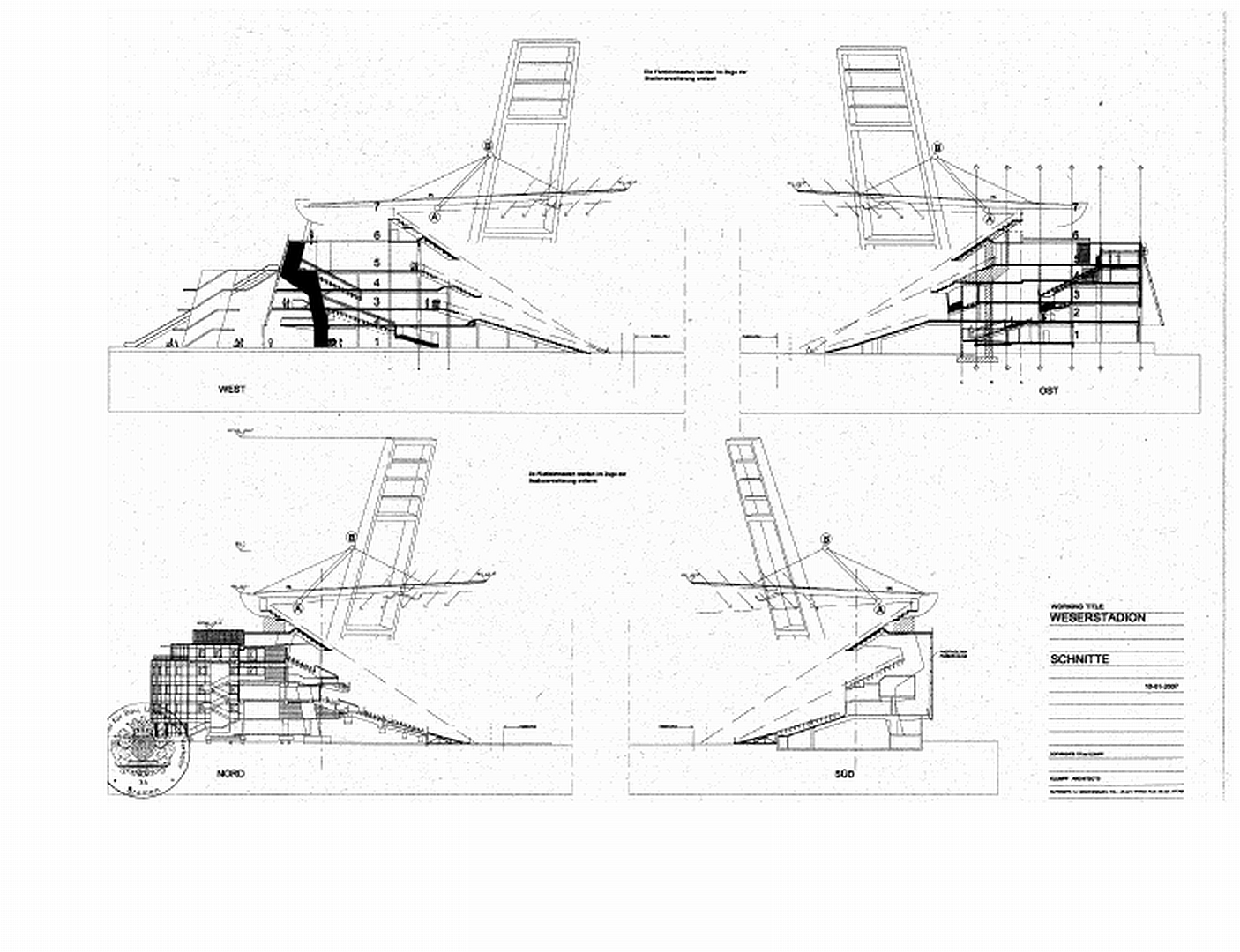

Section plans

[www.sercan.de]

38° (used sketchup)
Nowadays i think 34° is the max. in new projects

[lpioe]

34° is the recommended maximum for Britain.
In Italy, up to 41° is allowed, but handrails infront of each row are recommended for such angles.

Are this 38° the steepest angle you know sercan?
Mestalla and Bernabeu look very steep too in the upper rows.

[www.sercan.de]

wow great information ipioe
Never heard that before.
Although new german stadiums has got max. 34° i know that the Siganl iduna Park in Dortmund has got a 37 or 38 tier

Bernabeu was i think max. 40° (3rd tier)
Sorry, no section of the Mestalla, but the steapest i know is Bombanera
1st tier 25°
2nd tier 36°
3rd tier 45°

La Bombanera (scaned from Stadionwelt magazine)

[lpioe]

45° is incredible
Do you know if there are handrails in this part of the stadium?

Btw I got the information from a book I rented from the library.
http://www.amazon.com/Stadia-Design-.../dp/0750645342
It's a very good read if you are interested in stadium designs. I found the pages about sightlines particulary useful, since I didn't include them before.

[www.sercan.de]

I think stands with over 34° has got handrails.
And IMO Bombanera has got them also
http://www.bocajuniors.com.ar/elclub_bombonera.php

EDIT:
http://www.football-wallpapers.com/w...1_1024x768.jpg

[www.sercan.de]

wow, totally forgot to post the one for the new Galatasaray stadium

[www.sercan.de]

Originally Posted by www.sercan.de

Telstra Stadium

Better one

3rd tier is 34°
2nd tier 30°
1st tier 13° and 15°

[Mo Rush]

Originally Posted by www.sercan.de

Better one

3rd tier is 34°
2nd tier 30°
1st tier 13° and 15°

looks similar to the new football stadium i posted to the creative corner.

[www.sercan.de]

[www.sercan.de]

Juventus Arena

[GNU]

Some things Im wondering about:

It seems like they want to keep the floodlight masts? Whereas they said in the beginning that they would take them down.
It also seems like they keep those removable stands which are placed close to the pitch.
Why would they do that? Cant they built some new concrete ones whilst theyre at it?
And what is the story behind that escalator on the western stand?

[www.sercan.de]

IMo its like this
West and East (stands behind the goals) will be demolished and new stands will be built. As you can see they are closer to the pitch and different.
East has got suites

North and South will get a 3rd tier

[GNU]

Originally Posted by www.sercan.de

IMo its like this
West and East (stands behind the goals) will be demolished and new stands will be built. As you can see they are closer to the pitch and different.
East has got suites

No, aparently that wont happen.
Maybe that drawing here is a bit older and from a time when they were still planning to rebuilt those stands.
But now they simply will put up a new roof, add a third tier and give it a new exterior.
The building of new stands will be postponed though as far as I know.
And that sucks!

[Mo Rush]

Green Point Stadium 70,000

[Tom Hughes]

Does anyone have a copy of the cross section for the North Stand at Highbury (Arsenal FC), which was built in the early 90's? I would appreciate a look at that one if its about!

[migo]

Sorry...

Edit:
Thanks Dallasbrink. Soon after I posted the original message, I found the link you posted below.

[Dallasbrink]

to download the PDF go to this site and click "Press Center" on the top right and then click "Design Statement PDF" on the bottom of the left bar

http://stadium.dallascowboys.com/

[eazyz]

Anyone have anything from old Chicago Stadium??? It was steep and close with overhangs.

[www.sercan.de]

Parc de Princes

[skaP187]

Originally Posted by www.sercan.de

Parc de Princes

One of my favourite stadiums...
