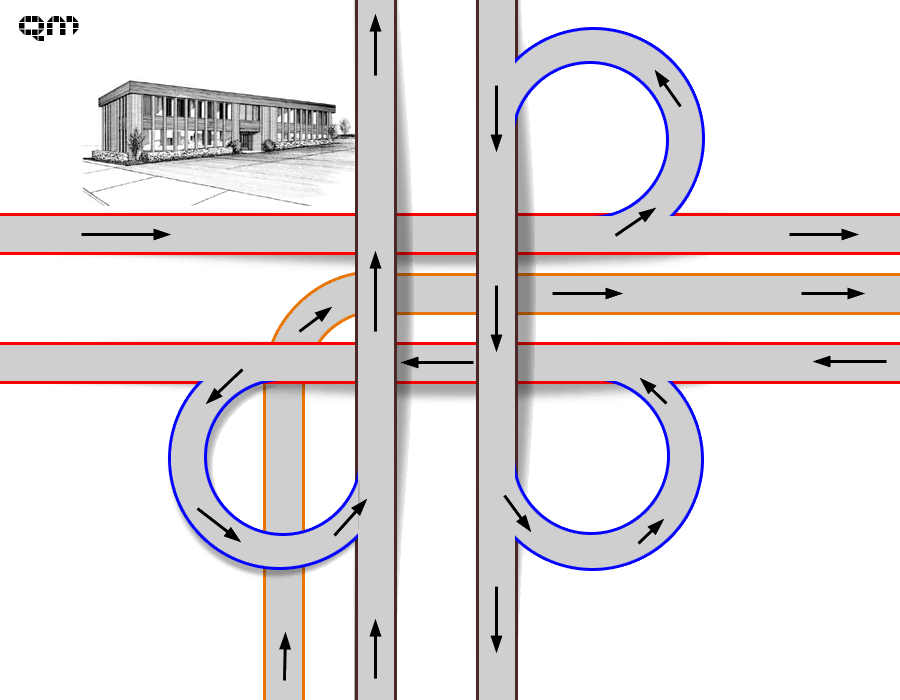

The design of Sohrab Goth Interchange. Sorry but this is the best I can make Childish na?



Black Lines are Flyovers.
Red lines are Ground level roads(Super Highway/Shahrah-e-Pakistan).
Blues are the loops.
And Finally, orange is the underpass.

[Intoxication]

HAHA!

Originally Posted by SiamuRathka

They had the same exact problem at Sohrab Goth Karachi. Being smarter than the rest of Pakistanis, we found a solution - underpass.

Thats because Ooga ain't there.

[brightside.]

Originally Posted by IslamicRenaissance

Black Lines are Flyovers.
Red lines are Ground level roads(Super Highway/Shahrah-e-Pakistan).
Blues are the loops.
And Finally, orange is the underpass.

Where is the orange underpass coming from?

[siamu maharaj]

Originally Posted by brightside.

Where is the orange underpass coming from?

The black road...

[brightside.]

Ok. Then they'd need another loop to get off from the northbound black road onto the eastbound red one.

[siamu maharaj]

That's what the underpass's for! It's horrible drawing, but the left black flyover and the orange underpass meet at the South.

[brightside.]

Originally Posted by SiamuRathka

That's what the underpass's for! It's horrible drawing, but the left black flyover and the orange underpass meet at the South.

D'oh! I thought the underpass was coming from the southbound flyover to enable the drivers to get on the eastbound red road. You're right, it makes sense that the underpass meets the northbound flyover.

[Indus]

Shouldn't this thread be renamed?

[RANA AAA]

Originally Posted by Indus

Shouldn't this thread be renamed?

into what...???

[Indus]

Originally Posted by RANA AAA

into what...???

Islamabad: Zero Point Flyover/Interchange?

[KB]

[Sufi Pistol]

Originally Posted by SiamuRathka

That's what the underpass's for! It's horrible drawing, but the left black flyover and the orange underpass meet at the South.

I know my computer drawing is toooooo bad...

[QM]

Originally Posted by IslamicRenaissance

I know my computer drawing is toooooo bad...

No problem.. mein hun na .. let me know if i have done anything wrong

for your help..

[RANA AAA]

thats great

[KB]

Nice diagram but some links seem to be missing. Not all possible traffic flow links are shown

[siamu maharaj]

Originally Posted by qaiserm

No problem.. mein hun na .. let me know if i have done anything wrong

for your help..

Damn!

Btw, the North-bound bottom two roads (black and orange on the left) are the same road before they biforcate. And the orange one goes on to meet the East-bound red one.

[thePakMan]

Originally Posted by qaiserm

No problem.. mein hun na .. let me know if i have done anything wrong

for your help..

nice. Now i see what Saimu meant by underpass.

[Plasma.]

But how are they going to build an under-pass under the whole complex of the monument. It will take a shit load of digging and i think its much better that they leave it alone. Unless they have that amount of time.
